RW ELECTRONICS

¨ 3 to 28 volts DC or switch closure

¨ Acoustical trigger

¨ Inputs configuration in “or” logic

¨ Test switch on box

Trigger conditioning interface which will accept either of three types of inputs.

1. An acoustical input

2. A switch closure

3. Voltage ranging from 3 to 28 volts DC

The acoustical sensitivity may be varied from a pin drop to an explosion

The box is configured to act as an “or” switch when using the wired and acoustical inputs. The acoustical may be switched off if not required.

The quad output of the box is compliant to all Photron TTL trigger input and data acquisition systems requirements.

SKU/Item Number: SNB01B

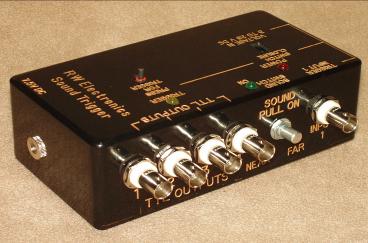

SOUND TRIGGER BOX
