Configurable input

Multi TTL Positive Outputs



Product Summary

¨ 3 to 28 volts DC input

¨ Switch closure input

¨ Test switch on box

¨ 4 TTL outputs

The trigger conditioning interface which will accept either a switch closure or a voltage input is selectable by the user. The voltage ranges from 3 to 28 volts DC.

Onboard switch trigger

The quad output of the box is compliant to all Photron TTL trigger input and data acquisition systems requirements

SKU/Item Number: STD01A

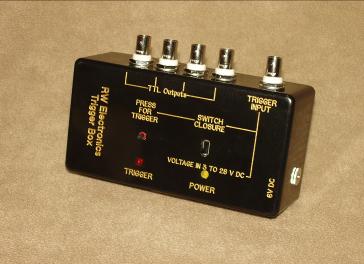

STANDARD TRIGGER BOX
